STC Solenoid and Pneumatic Directional Control Valve Specifications

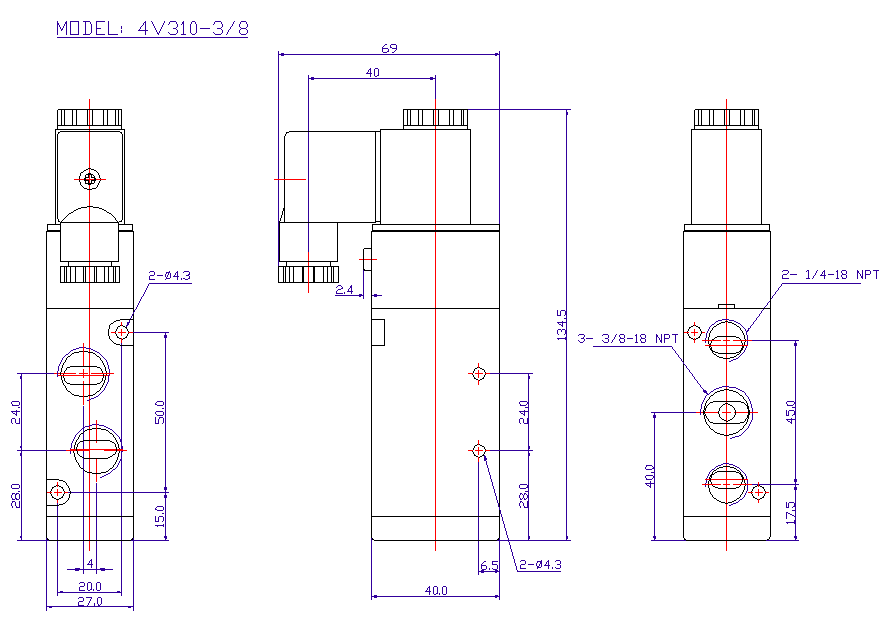

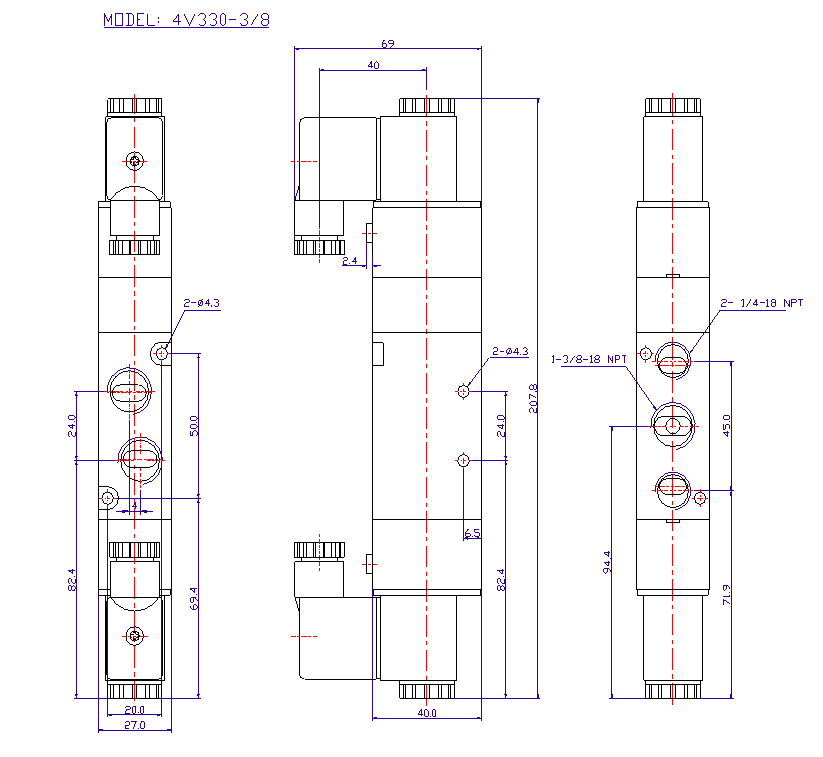

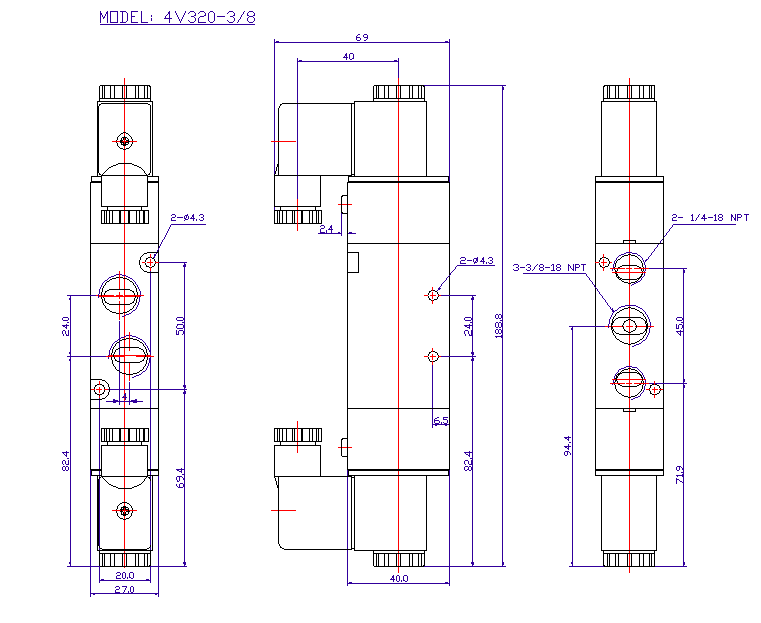

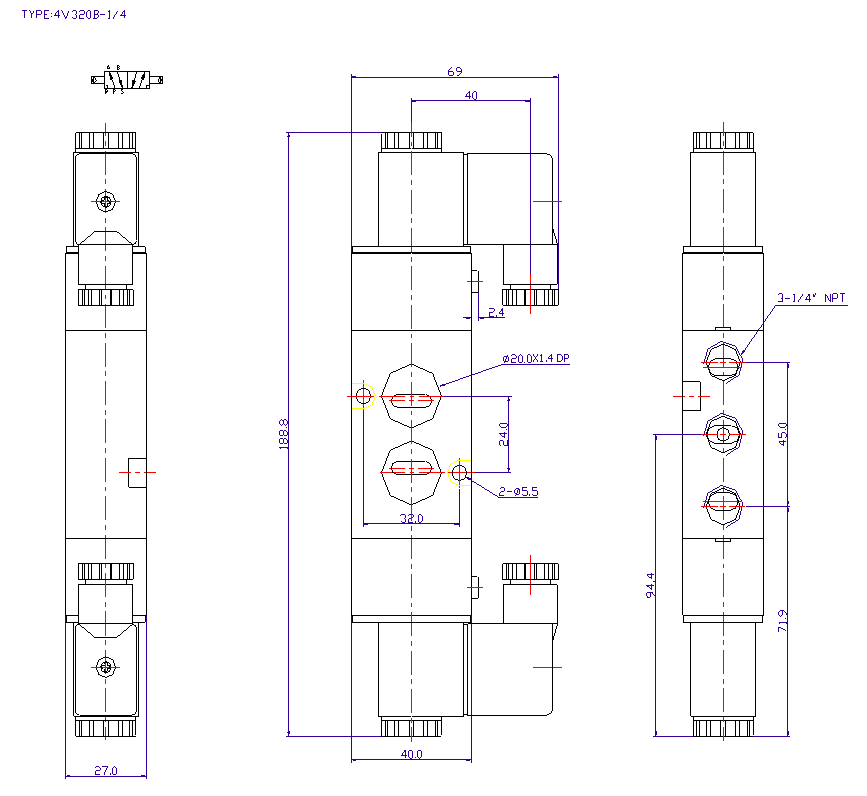

Download CAD Drawings: 4V310-3/8 4V320-3/8 4V330-3/8

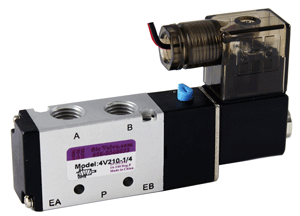

| Part No. | Valve Picture | Port Size (NPT) | Voltage | Electrical Connection | Port No / Position / Solenoid | Cv | Response Time | Power Rating |
| 4V310-1/8 |
 |
3/8" (inlet/outlet) 1/4" (exhaust) |
1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED Indicator) |
5/2/1 Four Way Valve |
1.68 80 SCFM @ 100PSI |

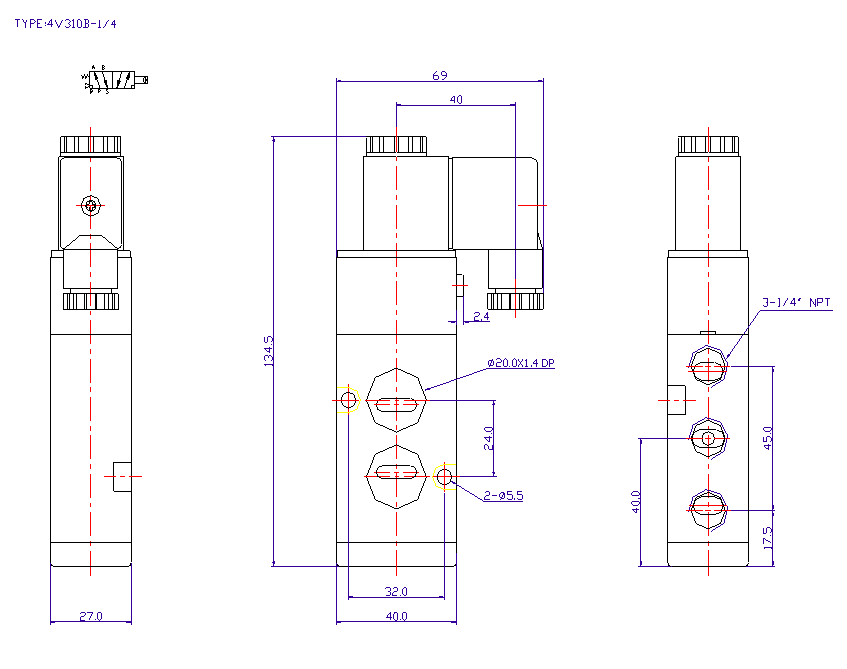

<20ms | 3 - 4.8W |
| 4V310-1/4B |
 |
1/4" (inlet) 1/4" (exhaust) |
5/2/1 Actuator Mount Four Way Valve |
1.68 80 SCFM @ 100PSI |

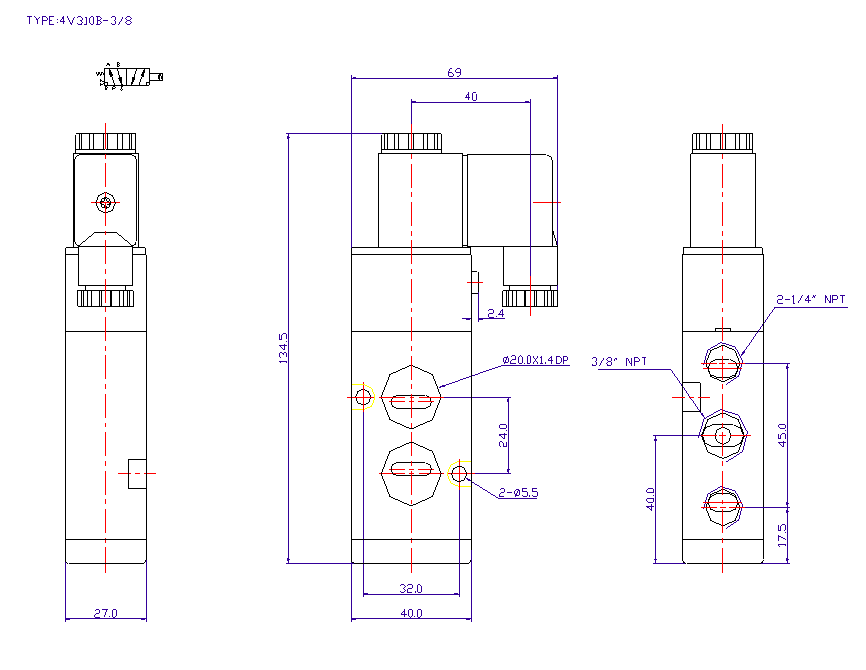

||||
| 4V310-3/8B | 3/8" (inlet) 1/4" (exhaust) |
5/2/1 Actuator Mount Four Way Valve |
1.68 80 SCFM @ 100PSI |

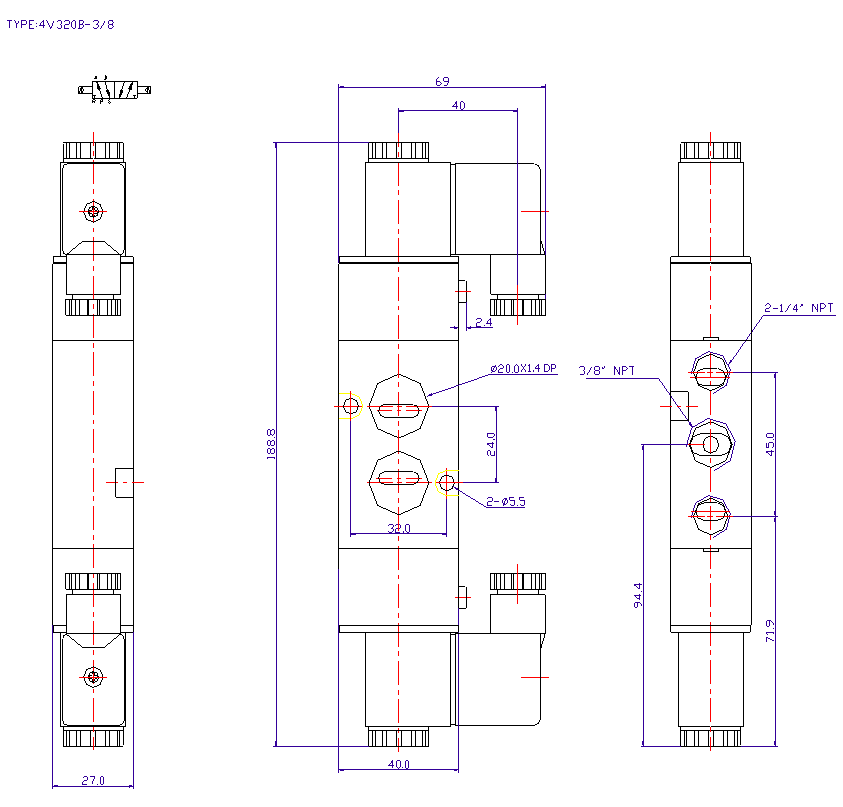

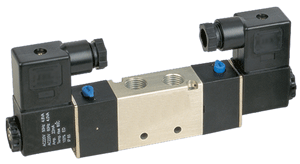

|||||
| 4V320-3/8 |
 |
3/8" (inlet/outlet) 1/4" (exhaust) |
5/2/2 Four Way Valve Double Solenoid |
1.68 80 SCFM @ 100PSI |
||||
| 4V330C-3/8 |
 |
3/8" (inlet/outlet) 1/4" (exhaust) |
5/3/2 Four Way Valve Double Solenoid Three Position, Closed Center |
1.68 80 SCFM @ 100PSI |
| Specifications | |
| Port & Mounting | Body Ported |
| Action & Motion | Pilot Operated, Spool Design, Two Position, 4 Way, 5 Body Ported Solenoid Valve |
| Operating Pressure | 21 to 115PSI |
| Working Medium | 40 micron filtered air |
| Operating Temperature | -10 to 60°C with non-freezing medium |
| Coil Insultation & Protection Class | F Class, IP65 (CE Certification) |
| Coil Power, Duty Cycle | 3 or 4.8 Watts, 100% ED |
| Electrical Connection | D = DIN 43650B (with LED indicator, conduit terminal) G = Grommet (12" Lead Wire) |
| Body Material | Aluminum |
| Seal Material | NBR |
| Armature Tube | Brass |
| Plunger & Spring | Stainless Steel |
| Lubrication | Not Required |
