AB Series Aluminum Body Filter-Regulator-Lubricator (FRL) Specifications
| Specifications |
 |
|
| Part No. | AL2000 | |
| Description | Lubricator | |
| Port Size (NPT) | 1/4" | |
| Flow Rate (SCFM) | 16 | |
| Filtration (Microns) | ||
| Max. Pressure (PSI) | 150 | |
| Operating Temperature (°F) | 40-140 | |
| Materials of Construction | ||
| Metal Body | Aluminum Alloy (Epoxy Coated) | |
| Plastic Bowl | Polycarbonate | |
| Body Shield | Painted Steel | |
| Filter | Sintered Brass (40µ) or Plastic (5µ) | |

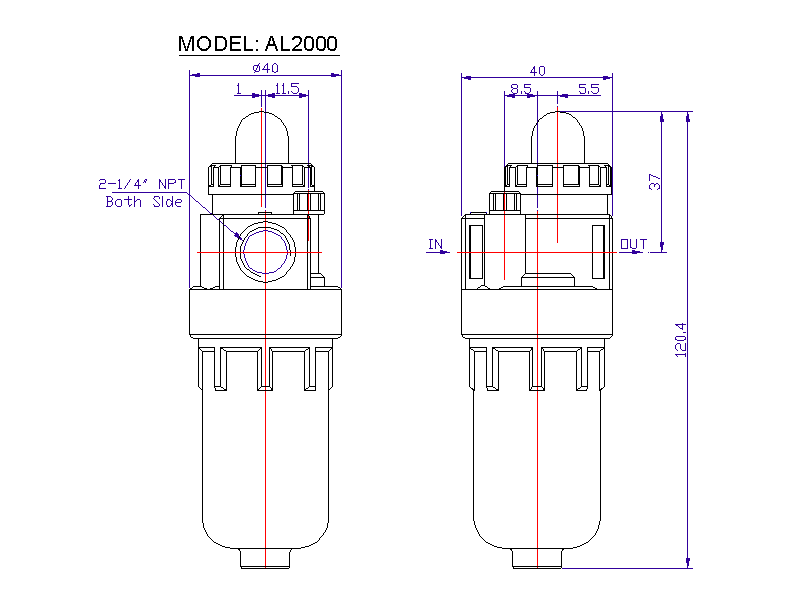

Dimensions: AL2000 (Unit = mm)
