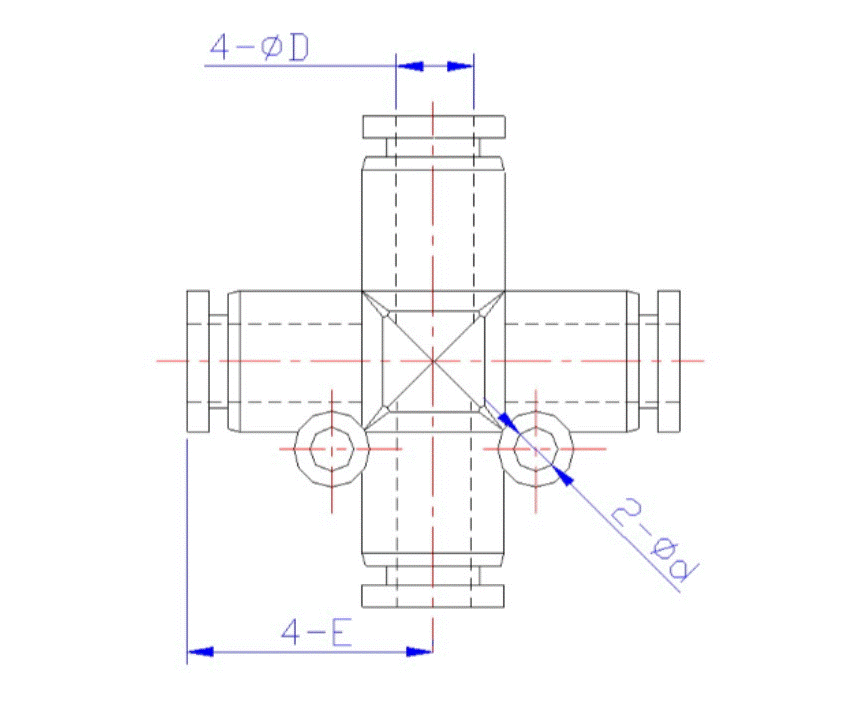

Model CU Dimensions Cross Union
Model	ФD	Фd	E
CU 5/32	5/32	3.2	17.5
CU 3/16	3/16	3.2	17.8
CU 1/4	1/4	3.2	19.3
CU 5/16	3/16	3.2	22.75
CU 3/8	3/8	4.2	27
CU 1/2	1/2	4.3	29.6
CU 4	4	3.2	17.5
CU 6	6	3.2	19.3
CU 8	8	3.2	22.75
CU 10	10	4.2	27
CU 12	12	4.3	29.6
Dimensions for Reference Use Only: Imperial fittings in mm, Metric fittings in mm, U.S.O.

Link to Push-In Air Fitting Installation Procedure and Specifications
