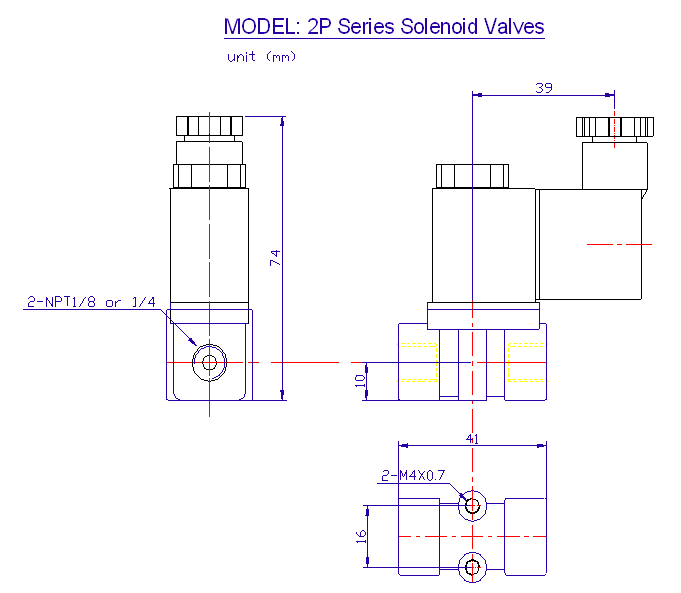

Solenoid Valve Specifications & Dimensions: 2P Series
| Part No. | Valve Picture | Port Size (NPT) | Voltage | Electrical Connection | Port No / Position / Solenoid | Cv / Flow Rate | Response Time | Power Consumption | Valve Symbol |
| 2P025-1/8 |
 |
1/8" | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED Indicator) |
2/2/1 Direct Acting Normally Closed Two Way Valve |
0.23 22 SCFM @ 100PSI |
<20ms | 3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
 |
| 2P025-1/4 | 1/4" | ||||||||
| 2P035-1/8 | 1/8" | 1 = 12VDC 2 = 24VDC 2A = 24VAC 3 = 110VAC 4 = 220VAC (50/60Hz) |
G = Grommet D = DIN (with LED Indicator) |
3/2/1 Direct Acting Normally Closed Three Way Valve |
0.1 5 SCFM @ 100PSI |
<20ms | 3W for 40PSI 4.8W for 60PSI 6.5W for 115PSI |
 |
|
| 2P035-1/4 | 1/4" |
| Specifications | |
| Port & Mounting | Body Ported |
| Action & Motion | Direct Acting, Normally Closed, Two Position, 2 to 3 Way |
| Operating Pressure | 28" Hg to 115PSI (Coil Wattage Dependent) |
| Working Medium | Air, Inert Gas, & Liquid |
| Maximum Pressure | 150PSI |
| Operating Temperature | -5 to 80°C with non-freezing medium |
| Coil Insulation & Protection Class | F Class, IP 65 (CE Certification) |
| Coil Duty Cycle | 100% ED |
| Electrical Connection | D = DIN (with LED indicator, conduit terminal) G = Grommet (12" Lead Wire) |
| Body Material | PA66 (Nylon, Engineered Plastic) |
| Seal Material | NBR (Buna N) |
| Armature Tube | Brass |
| Plunger & Spring | Stainless Steel |
The 2P Series Valves are normally closed, direct acting solenoid valves
and do not require a minimum differential pressure to operate. As shown in the diagram below,
when the coil is de-energized (left diagram), the plunger rests on the main orifice and is held
in place by the plunger spring force, sealing the valve. When the coil is energized (right diagram),
the solenoid lifts the plunger and allows the working medium to flow through the orifice.
The working medium and flow direction are indicated in purple in the diagram.
STC's high performance direct acting plastic body solenoid valves offer reliability, compact and rugged designs, low power consumption, high-speed response, long-life cycle (over 10 million cycles), DIN connections and indicator lights, pre-wired electrical connections, manifold mounting options, and simple installation, maintenance, and control.
STC's high performance direct acting plastic body solenoid valves offer reliability, compact and rugged designs, low power consumption, high-speed response, long-life cycle (over 10 million cycles), DIN connections and indicator lights, pre-wired electrical connections, manifold mounting options, and simple installation, maintenance, and control.
- To Connect a DIN Coil:
- Remove the Philips screw from the plastic housting & unplug from the DIN coil.
- Use the removed screw to push the terminal block out of the plastic DIN housing.
- Note the "1", "2", and ground "⏚" symbols.
- For DC DIN Coils, connect "1" to your positive lead and "2" to your negative lead.
- For AC DIN Coils, connect "1" to your HOT lead, "2" to your NEUTRAL lead, and "⏚" to your ground lead, if required.
- To Connect a Grommet Coil:
- For DC Coils, connect the red wire to your positive lead and the black wire to your negative lead.
- For AC Coils, connect the black wire to your HOT lead and the white wire to your NEUTRAL lead.
- For Coils provided with Molded Cables, the color of the wire indicates the type of lead:
- GREEN = Ground Wire
- BLUE = Positive or HOT Wire
- BROWN = Negative or Neutral Wire
