Solenoid Valves & Air-Pilot Activated Valves

STC's high performance solenoid and air-pilot activated valves offer reliability, high-flow rates, compact and rugged designs, low power consumption, high-speed response, long life cycle, DIN connections with built-in surge suppression, and indicator lights. Numerous options, including built-in push-in fittings, manifolds, pre-wired electric connections, and namur valves are available. Installation, maintenance, and control are simple! For a list of valve functions, check out our Solenoid Valve Guide at the bottom of this page.

*DESIGN CHANGES* Please note that design changes will be implemented for the 3V210-1/4, 3V410-1/2, and 4V210-1/4 valve models. For a detailed explanation of the changes, please see the following document: Pneumatic Valve Design Changes

STC Solenoid Air Valves Selection Guide  (Click on a picture to get details)
Direct Acting 2 & 3 Way Valves Stacking Valves 3 Way 2 Position
Single Solenoid Valve		 3 Way 2 Position
Double Solenoid Valves		 4 Way 2 Position
Single Solenoid Valves		 Pneumatic Valve Specifications
Direct Acting Plastic Solenoid Valve Direct Acting Solenoid Valve Manifold Solenoid Valve 3 WAY VALVE Double Solenoid Valve Directional Valve
4 Way 2 Position
Double Solenoid Valves		 4 Way 3 Position
Double Solenoid Valves		 Namur Valves Air Piloted Valves Integrated Manifolds Solenoid Coils Solenoid Valve Guide
Double Solenoid Valve AIR PILOT VALVE NAMUR VALVE Air Pilot 3 Way Valve Manifold Directional Valves Solenoid Coil

STC Solenoid Valves (Please specify the voltage when ordering.)
Item Part No. Unit Price Picture Port Size (NPT) Voltage Electrical Connection Features Cv/Flow Rate Power Rating Valve Symbol/Catalog
1 2P025-1/8 $22.29 Direct Acting Solenoid Valve 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 2/2/1
Two Way, Direct Acting
Operating Temp: 14-140 deg. F
Operating Pressure: Vacuum - 115PSI
Response Time <20ms		 Cv = 0.23

22 SCFM @ 100PSI		 3W for 40PSI

4.8W for 60PSI

6.5W for 115PSI		 Two Way NC Pneumatic Diagram
Download Catalog:
2P025.PDF
2 2P025-1/4 $22.29 1/4" NPT
3 2V025-1/8 $22.75 2 WAY SOLENOID VALVE 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 2/2/1
Two Way, Direct Acting
Normally Closed
Operating Temp: 14-140 deg. F
Operating Pressure: Vacuum - 115PSI
Response Time <20ms		 Cv = 0.23

22 SCFM @ 100PSI		 3W for 40PSI

4.8W for 60PSI

6.5W for 115PSI		 Two Way NC Pneumatic Diagram
Download Catalog:
2V025.PDF
4 2V025-1/4 $22.75 1/4" NPT
5 2V035-1/8 $22.75 1/8" NPT
10-32 Exh.		 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 3/2/1
Three Way, Direct Acting
Normally Closed or Open
Operating Temp: 14-140 deg. F
Operating Pressure: Vacuum - 115PSI
Response Time <20ms		 Cv = 0.05

5 SCFM @ 100PSI

Orifice: 1mm		 3W for 40PSI

4.8W for 60PSI

6.5W for 115PSI		 Three Way NC Pneumatic Diagram
6 2V035-1/4 $22.75 1/4" NPT
10-32 Exh.
7 2V1-1/8 $22.75 Manifold Solenoid Valve 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 2/2/1
Two Way, Direct Acting
Normally Closed
Stacking
Operating Temp: 14-140 deg. F
Operating Pressure: Vacuum - 115PSI
Response Time <20ms		 Cv = 0.23

22 SCFM @ 100PSI		 3W for 40PSI

4.8W for 60PSI

6.5W for 115PSI		 Two Way NC Pneumatic Diagram
Download Catalog:
2V1-3V1
8 3V1-1/8 $22.75 1/8" NPT
10-32 Exh.		 Port/Position/Solenoid: 3/2/1
Three Way, Direct Acting
Normally Closed or Open
Stacking
Operating Temp: 14-140 deg. F
Operating Pressure: Vacuum - 115PSI
Response Time <20ms		 Cv = 0.05

5 SCFM @ 100PSI

Orifice: 1mm		 Three Way NC Pneumatic Diagram
Download Catalog:
2V1-3V1
Three Way, Two Position, Single Solenoid Valves (3/2/1)
9 3V110-1/8 $29.34 3 WAY AIR VALVE 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 3/2/1
Three Way Valve
Two Position
Single Solenoid

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67
25 SCFM @ 100PSI		 2.5W 3 Way Directional Valve
Download Catalog:
3V110-410.PDF

3V210-1/4 & 3V410-1/2 Design Changes

3D PDF Model

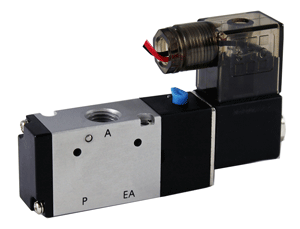

10 3V210-1/4 $29.34 1/4" NPT Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
11 3V310-1/4 $39.52 1/4" NPT Cv = 1.68
80 SCFM @ 100PSI
12 3V310-3/8 $39.52 3/8" NPT Cv = 1.68
80SCFM @ 100PSI
13 3V410-1/2 $68.87 1/2" NPT Cv = 2.79
160SCFM @ 100PSI
Three Way, Two Position, Double Solenoid Valves (3/2/2)
14 3V120-1/8 $44.92 Double Solenoid Valve 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 3/2/2
Three Way Valve
Two Position
Double Solenoid

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67
25 SCFM @ 100PSI		 2.5W Three Way NC Pneumatic Diagram
Download Catalog
3V120-420.PDF

3D PDF Model
15 3V220-1/4 $44.92 1/4" NPT Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
16 3V320-3/8 $55.09 3/8" NPT Cv = 1.68
80 SCFM @ 100PSI
17 3V420-1/2 $96.41 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
Five Port, Four Way, Two Position, Single Solenoid Valves (5/2/1)
18 4V110-1/8 $30.54 4 Way Directional Valve 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 5/2/1
Four Way Valve
Single Solenoid

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67
25 SCFM @ 100PSI		 2.5W Four Way NC Pneumatic Diagram
Download Catalog:
4V110-410.PDF

4V210-1/4 Design Changes

3D PDF Model
19 4V210-1/4 $29.34 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
20 4V310-1/4 $39.52 1/4" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
21 4V310-3/8 $39.52 3/8" (inlet/outlet)
1/4 (exhaust)		 Cv = 1.68
80SCFM @ 100PSI
22 4V410-1/2 $68.87 1/2" NPT Cv = 2.79
160SCFM @ 100PSI
Five Port, Four Way, Two Position, Double Solenoid Valves (5/2/2)
23 4V120-1/8 $44.92 Double Solenoid Valve 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 5/2/2
Four Way Valve
Double Solenoid

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67

25 SCFM @ 100PSI		 2.5W Double Solenoid 4 Way Valve
Download Catalog
4V120-420.PDF

3D PDF Model
24 4V220-1/4 $44.92 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
25 4V320-1/4 $55.09 1/4" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
26 4V320-3/8 $55.09 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
27 4V420-1/2 $96.41 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
Five Port, Four Way, Three Position, Double Solenoid Valves (5/3/2)
28 4V130C-1/8 $90.18 AIR VALVE 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 5/3/2
Four Way Valve
Three Position
Double Solenoid
Closed Center

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67
25 SCFM @ 100PSI		 2.5W 3 Position Solenoid Valve
Download Catalog:
4V130-430.PDF

3D PDF Model

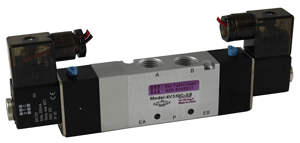

29 4V230C-1/4 $92.85 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
30 4V330C-3/8 $107.19 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
31 4V430C-1/2 $137.73 1/2" NPT Cv = 1.68
160SCFM @ 100PSI
32 4V130E-1/8 $90.18 AIR VALVE 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 5/3/2
Four Way Valve
Three Position
Double Solenoid
Exhausted Center

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI		 Cv = 0.67

25 SCFM @ 100PSI		 2.5W 3 Position Solenoid Valve
Download Catalog
4V130-430.PDF

3D PDF Model
33 4V230E-1/4 $92.85 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
34 4V330E-3/8 $107.19 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
35 4V430E-1/2 $137.73 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
36 4V130P-1/8 $90.18 AIR VALVE 1/8" NPT 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)		 Port/Position/Solenoid: 5/3/2
Four Way Valve
Three Position
Double Solenoid
Pressure Center

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI
Response Time <20ms		 Cv = 0.67
25 SCFM @ 100PSI		 2.5W 3 Position Pneumatic Valve
Download Catalog:
4V130-430.PDF

3D PDF Model
37 4V230P-1/4 $92.85 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.89
53 SCFM @ 100PSI		 3W / 4.8W
38 4V330P-3/8 $107.19 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
39 4V430P-1/2 $137.73 1/2" NPT Cv = 1.68
160SCFM @ 100PSI
Five Port, Four Way, Two Position, Single Solenoid NAMUR Valves (5/2/1)
40 4V210-1/4B $35.30 NAMUR AIR VALVE 1/4" (inlet)
1/8" (exhaust)		 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 G = Grommet

D = DIN (with LED)

E = Explosion Proof Coil		 Port/Position/Solenoid: 5/2/1
Four Way Valve
Two Position
Single Solenoid
Actuator Mount (NAMUR)

Operating Temp: 14-140 deg. F
Operating Pressure: 21 - 115PSI		 Cv = 0.89

53 SCFM @ 100PSI		 3W / 4.8W Four Way NC Pneumatic Diagram
Download Catalog
4V130-430.PDF
41 4V310-1/4B $45.52 1/4" (inlet)
1/4" (exhaust)
Namur		 Cv = 1.68
80 SCFM @ 100PSI
42 4V310-3/8B $45.52 3/8" (inlet)
1/4" (exhaust)
Namur		 Cv = 1.68
80 SCFM @ 100PSI

Pilot Operated Air Valves: Body Ported Type
Item Part No. Unit Price Valve Picture Port Size (NPT) Description # Ways/Port/
Position/Pilot		 Cv/Flow Rate Operating Pressure Valve Symbol/Catalog
43 3A110-1/8 $22.75 Air Pilot Valve 1/8" NPT 3 Way 2 Position
Single Pilot Air Valve		 3/3/2/1 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 Four Way NC Pneumatic Diagram
Download Catalog:
3A110-410.PDF
44 3A210-1/4 $22.75 1/4" NPT Cv = 0.78
53 SCFM @ 100PSI
45 3A310-3/8 $27.55 3/8" NPT Cv = 1.68
80 SCFM @ 100PSI
46 3A410-1/2 $45.52 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
47 3A120-1/8 $28.75 Air Pilot Valve 1/8" NPT 3 Way 2 Position
Double Pilot Air Valve		 3/3/2/2 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 Four Way NC Pneumatic Diagram
Download Catalog:
3A120-420.PDF
48 3A220-1/4 $29.34 1/4" NPT Cv = 0.78
53 SCFM @ 100PSI
49 3A320-3/8 $34.73 3/8" NPT Cv = 1.68
80 SCFM @ 100PSI
50 3A420-1/2 $59.28 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
51 4A110-1/8 $22.75 Air Pilot4 Way Valve 1/8" NPT 4 Way 2 Position
Single Pilot Air Valve		 4/5/2/1 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 Four Way NC Pneumatic Diagram
Download Catalog:
4A110-410.PDF
52 4A210-1/4 $22.75 1/4" (inlet/outlet)
1/8"(exhaust)		 Cv = 0.78
53 SCFM @ 100PSI
53 4A310-3/8 $27.55 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
54 4A410-1/2 $45.52 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
55 4A120-1/8 $28.75 Air Pilot Valve 1/8" NPT 4 Way 2 Position
Double Pilot Air Valve		 4/5/2/2 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 Four Way NC Pneumatic Diagram
Download Catalog:
4A120-420 PDF
56 4A220-1/4 $29.34 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.78
53 SCFM @ 100PSI
57 4A320-3/8 $34.73 3/8" (inlet/outlet
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
58 4A420-1/2 $59.28 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
59 4A130C-1/8 $59.28 Air Pilot Valve 1/8" NPT 4 Way 3 Position
Closed Center
Double Pilot Air Valve		 4/5/3/2
Closed Center		 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 3 position directional valve
Download Catalog:
4A130-430.PDF
60 4A230C-1/4 $75.25 1/4" (inlet/outlet)
1/8"(exhaust)		 Cv = 0.78
53 SCFM @ 100PSI
61 4A330C-3/8 $86.84 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
62 4A430C-1/2 $103.26 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
63 4A130E-1/8 $59.28 Air Pilot Valve 1/8" NPT 4 Way 3 Position
Exhausted Center
Double Pilot Air Valve		 4/5/3/2
Pressure Center		 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 3 position Directional Valve
Download Catalog:
4A130-430.PDF
64 4A230E-1/4 $75.25 1/4" (inlet/outlet)
1/8" (exhaust)		 Cv = 0.78
53 SCFM @ 100PSI
65 4A330E-3/8 $86.84 3/8" (inlet/outlet
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
66 4A430E-1/2 $103.26 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI
67 4A130P-1/8 $59.28 Air Pilot Valve 1/8" NPT 4 Way 3 Position
Pressure Center
Double Pilot Air Valve		 4/5/3/2
Exhaust Center		 Cv = 0.67
25 SCFM @ 100PSI		 Valve: 0 - 115PSI
Pilot: 40PSI		 3 Position Air Valve
Download Catalog:
4A130-430.PDF
68 4A230P-1/4 $75.25 1/4" (inlet/outlet)
1/8"(exhaust)		 Cv = 0.78
53 SCFM @ 100PSI
69 4A330P-3/8 $86.84 3/8" (inlet/outlet)
1/4" (exhaust)		 Cv = 1.68
80 SCFM @ 100PSI
70 4A430P-1/2 $103.26 1/2" NPT Cv = 2.79
160 SCFM @ 100PSI

Integrated Aluminum Base Mounted Manifolds
(Please specify the No. of Stations when ordering)
Price includes all mounting accessories - gasket & fasteners)
Item Part No. Unit Price Manfiold Picture Port Size (NPT)
/ No. Stations		 Description
71 3V-100M-2 $13.31 Manifold Directional Valves 1/4" port
2 STATIONS		 Integrated Base for Mounting 3V-100 & 3A-100 Series Solenoid Valves
(Includes Mounting hardware and seal)
72 3V-100M-4 $26.62 1/4" port
4 STATIONS
73 3V-100M-6 $39.92 1/4" port
6 STATIONS
74 3V-100M-8 $53.22 1/4" port
8 STATIONS
75 3V-100M-16 $106.46 1/4" port
16 STATIONS
76 3V-100M-B $5.85 - Blank Plate for 3V-100M Manifold
77 3V-100M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 3V-100M Manifold
78 3V-200M-2 $13.31 Manifold Directional Valves 1/4" port
2 STATIONS		 Integrated Base for Mounting 3V-200 & 3A-200 Series Solenoid Valves
(Includes Mounting hardware and seal)
79 3V-200M-4 $26.62 1/4" port
4 STATIONS
80 3V-200M-6 $39.92 1/4" port
6 STATIONS
81 3V-200M-8 $53.22 1/4" port
8 STATIONS
82 3V-200M-16 $106.46 1/4" port
16 STATIONS
83 3V-200M-B $5.85 - Blank Plate for 3V-200M Manifold
84 3V-200M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 3V-200M Manifold
85 3V-300M-2 $19.97 Manifold Directional Valves 3/8" port
2 STATIONS		 Integrated Base for Mounting 3V-300 & 3A-300 Series Solenoid Valves
(Includes Mounting hardware and seal)
86 3V-300M-4 $39.92 3/8" port
4 STATIONS
87 3V-300M-6 $59.89 3/8" port
6 STATIONS
88 3V-300M-8 $79.84 3/8" port
8 STATIONS
89 3V-300M-16 $159.68 3/8" port
16 STATIONS
90 3V-300M-B $5.85 - Blank Plate for 3V-300M Manifold
91 3V-300M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 3V-300M Manifold
92 3V-400M-2 $33.26 Manifold Directional Valves 1/2" port
2 STATIONS		 Integrated Base for Mounting 3V-400 & 3A-400 Series Solenoid Valves
(Includes Mounting hardware and seal)
93 3V-400M-4 $66.54 1/2" port
4 STATIONS
94 3V-400M-6 $99.80 1/2" port
6 STATIONS
95 3V-400M-8 $133.08 1/2" port
8 STATIONS
96 3V-400M-16 $266.13 1/2" port
16 STATIONS
97 3V-400M-B $5.85 - Blank Plate for 3V-400M Manifold
98 3V-400M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 3V-400M Manifold
99 4V-100M-2 $13.31 Manifold Directional Valves 1/4" port
2 STATIONS		 Integrated Base for Mounting 4V-100 & 4A-100 Series Solenoid Valves
(Includes Mounting hardware and seal)
100 4V-100M-4 $26.62 1/4" port
4 STATIONS
101 4V-100M-6 $39.92 1/4" port
6 STATIONS
102 4V-100M-8 $53.22 1/4" port
8 STATIONS
103 4V-100M-16 $106.46 1/4" port
16 STATIONS
104 4V-100M-B $5.85 - Blank Plate for 4V-100M Manifold
105 4V-100M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 4V-100M Manifold
106 4V-200M-2 $13.31 Manifold Directional Valves 1/4" port
2 STATIONS		 Integrated Base for Mounting 4V-200 & 4A-200 Series Solenoid Valves
(Includes Mounting hardware and seal)
107 4V-200M-4 $26.62 1/4" port
4 STATIONS
108 4V-200M-6 $39.92 1/4" port
6 STATIONS
109 4V-200M-8 $53.22 1/4" port
8 STATIONS
110 4V-200M-16 $106.46 1/4" port
16 STATIONS
111 4V-200M-B $5.85 - Blank Plate for 4V-200M Manifold
112 4V-200M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 4V-200M Manifold
113 4V-300M-2 $19.97 Manifold Directional Valves 3/8" port
2 STATIONS		 Integrated Base for Mounting 4V-300 & 4A-300 Series Solenoid Valves
(Includes Mounting hardware and seal)
114 4V-300M-4 $39.92 3/8" port
4 STATIONS
115 4V-300M-6 $59.89 3/8" port
6 STATIONS
116 4V-300M-8 $79.84 3/8" port
8 STATIONS
117 4V-300M-16 $159.68 3/8" port
16 STATIONS
118 4V-300M-B $5.85 - Blank Plate for 4V-300M Manifold
119 4V-300M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 4V-300M Manifold
120 4V-400M-2 $33.26 Manifold Directional Valves 1/2" port
2 STATIONS		 Integrated Base for Mounting 4V-400 & 4A-400 Series Solenoid Valves
(Includes Mounting hardware and seal)
121 4V-400M-4 $66.54 1/2" port
4 STATIONS
122 4V-400M-6 $99.80 1/2" port
6 STATIONS
123 4V-400M-8 $133.08 1/2" port
8 STATIONS
124 4V-400M-16 $266.13 1/2" port
16 STATIONS
125 4V-400M-B $5.85 - Blank Plate for 4V-400M Manifold
126 4V-400M-KIT $8.23 - Blank Plate, Gasket, & Mounting Screws Set for 4V-400M Manifold

Solenoid Coils

Item Part No. Unit Price Picture Voltage Elecrical Connection Power Rating Applications Electrical Connections
127 100C $9.59 Solenoid Coil 100C 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 D = DIN (with LED indicator and conduit connector) 2.5W For 100 Series Solenoid Valves Insulation: F Class, IP65
Duty Cycle: 100% ED
CE Certification
128 100C $9.59 Solenoid Coil 100C Grommet G = Grommet 2.5W

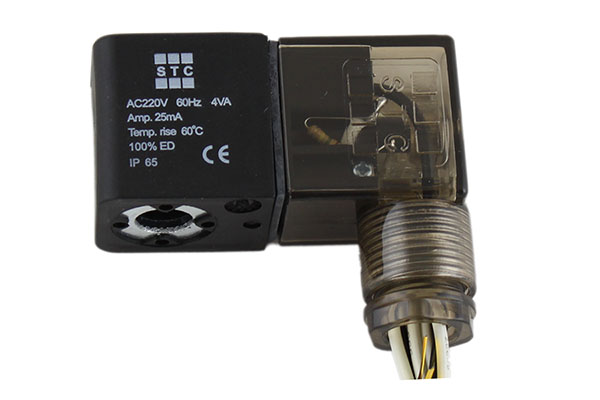

129 200C $9.59 Solenoid Coil 200C DIN 1 = 12VDC
2 = 24VDC

2A = 24VAC
3 = 110VAC
4 = 220VAC (50/60Hz)
 D = DIN (with LED indicator and conduit connector) 3W
4.8W
6.5W		 For 200-400 Series Solenoid Valves Insulation: F Class, IP65
Duty Cycle: 100% ED
CE Certification

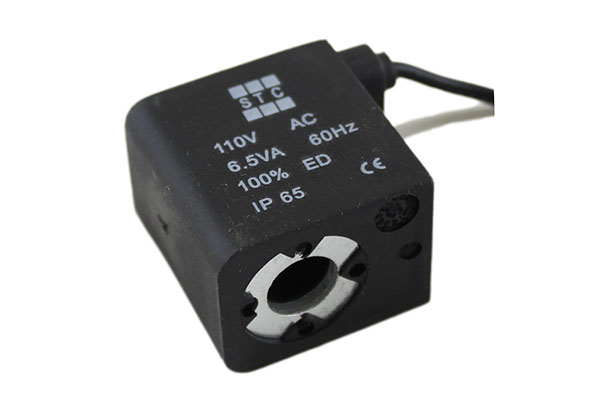

130 200C $9.59 Solenoid Coil 200C Grommet G = Grommet 3W
4.8W
6.5W

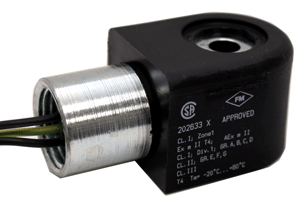

131 200C $103.79 Explosion Proof Valve Coil
Explosion Proof coil for 2V, 3V, & 4V Series Valves		 1E = 12VDC
2E = 24VDC

2AE = 24VAC
3E = 110VAC
4E = 220VAC (50/60Hz)
 All voltages with 1/2" NPT conduit connection Explosion Proof Coil Option
CL. I; ZONE 1,
CL. I; DIV.1; GR. A, B, C, D
CL. II; GR. E, F, G
CL. III; T4 Ta = -20°C...60°C		 Explosion Proof Solenoid Valve
Insulation: F Class, IP65
Duty Cycle: 100% ED
FM Certification
To connect DIN coil:
1. Remove the Philip screw from the plastic housing and unplug it from the DIN coil.
2. From the screw opening, use the screw to push the terminal block out of the plastic housing.
3. Note the 1, 2, and ground markings on the underside of the DIN enclosure.
4. For DC DIN coil, connect 1 to Positive, 2 to Negative.
5. For AC DIN coil, connect 1 to HOT wire, 2 to Neutral wire, and if required, connect ground to ground wire.

To connect Grommet coil:
1. For DC Coil, connect one of the two wires to Positive, and the other wire to Negative.
2. For AC Coil, connect one of the two wires to HOT wire, and the other wire to Neutral wire.

Pneumatic Valve Specifications

Valve Type 3A & 4A 100-400 Series Valves 3V & 4V 100-400 Series Valves 2V025-035, 2P025 Series Valves 2V1, 3V1 Series Valves
Port & Mounting Body Ported, Manifold Mounted Body Ported, Manifold Mounted Body Ported, Stacking or Manifold Mounted Body Ported, Stacking or Manifold Mounted
Action & Motion Air Pilot, Spool Design Internal Pilot, Spool Design Direct Acting Direct Acting
Operating Pressure 0 to 115 PSI 21 to 115 PSI Vacuum to 115 PSI Vacuum to 115 PSI
Coil Insulation & Protection Class N/A F Class, IP65 (CE Certification) F Class, IP65 (CE Certification) F Class, IP65 (CE Certification)
Coil Duty Cycle 100% ED 100% ED 100% ED 100% ED
Manual Override N/A Non-Locking: 100 series;
Locking: 200 to 400 series		 Non-Locking Non-Locking
Electrical Connection N/A D = DIN (with LED indicator, conduit terminal), G = Grommet (12" - 18" Lead Wire)
Working Medium 40 micron filtered air or inert gas 40 micron filtered air or inert gas 40 micron filtered air, inert gas & liquid, non-corrosive liquid
Maximum Pressure 180 PSI @ 75 Deg. F
Operating Temperature 14 to 140 Deg. F (-10 to 60 Deg. C)
Body Material 6061-T6 Aluminum 6061-T6 Aluminum (Engineered Plastic for 2P Series) 6061-T6 Aluminum
Seal Material NBR (Buna N)
Lubrication Not Required
Service Air

Solenoid Valve Guide

Valve Configurations Functions
2 Way Valve Configuration: 2 Position Valve to turn on and off
3 Way Valve Configuration: 2 Position Valve to fully extend single acting cylinder (spring return cylinder)
4 Way Valve Configuration: 2 Position Valve to fully extend and retract double acting cylinder
4 Way Valve Configuration: 3 Position, Closed-Center Valve to stop a double acting cylinder in partial stroke, all ports are shut off
4 Way Valve Configuration: 3 Position, Exhaust-Center Valve to have both cylinder ports open to exhaust such that the cylinder can be extended and retracted manually to facilitate set-up
4 Way Valve Configuration: 3 Position, Pressure-Center Valve to stop a double acting cylinder in partial stroke with pressure on both ends of the cylinder


Home Terms of Use Terms of Sale Career Contact Us Click Here to Order
Sizto Tech Corporation © 2001- All rights reserved. Last modified: January 18, 2017.
Information contained herein may be changed without prior notification.
